Manufacturing complex plastic parts at scale demands immense precision and speed. The cornerstone of this process relies on robust equipment to rapidly transform raw plastic pellets into flawless finished products. Engineers and procurement teams constantly face challenges when optimizing these production floors. Moving beyond basic definitions helps us understand how these systems truly impact production efficiency, capital expenditure, and part quality. Choosing the wrong equipment leads to severe defects, wasted energy, and crippling operational inefficiencies down the line. You cannot afford to guess when outfitting a modern facility. This guide bypasses top-level summaries to deliver a clear, actionable, decision-stage framework for professionals. You will learn exactly how to evaluate different drive technologies and calculate precise tonnage requirements. Finally, we will help you anticipate integration risks to ensure a seamless equipment rollout.

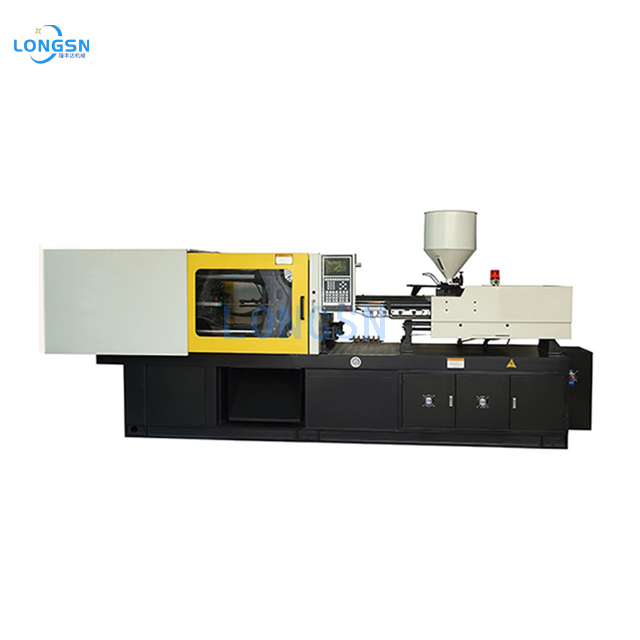

Understanding the hardware requires looking beyond basic textbook definitions. We must frame each physical component by its direct impact on the final molded product. Every modern Injection Molding Machine relies on precise synchronization between three major subsystems. If one subsystem underperforms, part quality suffers immediately.
The injection unit handles the complex process of melting, mixing, and injecting the polymer. Raw plastic pellets enter the heated barrel through a feed hopper. Inside the barrel, a specialized reciprocating screw rotates to move the material forward. Friction from this rotation generates intense shear heat. This mechanical friction, combined with external heater bands, creates a uniform molten pool.
Screw design plays a massive role in material integrity. Processing heat-sensitive resins requires specific screw geometries to prevent degradation. Once the plastic reaches the correct consistency, the screw stops rotating. It then acts as a plunger. The unit violently forces the molten plastic forward into the closed mold. Faster injection speeds reduce cycle times but require careful pressure management to avoid burning the material.
The clamping unit holds the steel mold closed under immense pressure. When the injection unit forces molten plastic into the cavity, the liquid polymer tries to push the mold halves apart. The clamping system resists this separating force. Two heavy steel plates, called platens, hold the mold halves securely.
Platen parallelism remains strictly critical here. If the platens misalign even slightly, plastic will leak out of the mold cavity. We call this defect "flash." Flash ruins part aesthetics and requires costly manual trimming. Furthermore, uneven pressure creates extreme tie-bar stress. Over time, uneven tie-bar stress will fracture the machine frame and severely damage expensive mold tooling.
The control system functions as the central brain of the entire operation. Older relay-based systems offered limited tracking. Modern closed-loop controllers represent a massive leap forward. They continuously monitor pressure, temperature, and position data in real time.
Closed-loop systems detect minor fluctuations during the cycle. If hydraulic pressure drops unexpectedly, the software instantly compensates to maintain consistent injection speeds. This rapid adjustment prevents dimensional variations across production runs. Reliable software ensures high repeatability, allowing operators to run thousands of cycles without manual intervention.
Selecting a drive technology dictates the long-term profitability of your manufacturing cell. We must establish a comparative evaluation framework based on lifecycle expenses and specific manufacturing use cases. Each drive type offers distinct advantages depending on your production goals.
Hydraulic systems have dominated the industry for decades. They use high-pressure oil to drive cylinders and motors.
All-electric systems replace hydraulic fluids with independent servo motors. Each movement axis uses a dedicated digital motor connected to precise ball screws.
Hybrid systems blend the best traits of both architectures. They typically use electric servo motors for screw rotation and hydraulic systems for the clamping unit. This setup allows continuous, energy-efficient plasticizing while maintaining high-pressure locking forces. Hybrids stand out as the ideal choice for medium-to-high volume custom molding operations. They strike a practical balance between upfront expenditure and long-term energy savings.
| Feature | Hydraulic | All-Electric | Hybrid |
|---|---|---|---|
| Energy Efficiency | Low to Moderate | Excellent | High |
| Precision & Repeatability | Good | Exceptional | Very Good |
| Maintenance Intensity | High (Fluid changes, leaks) | Low (Grease lubrication) | Moderate |
| Initial Capital Cost | Lowest | Highest | Moderate |
| Best Application Fit | Thick-walled, high-tonnage | Clean-room, tight-tolerance | Versatile custom molding |
Matching equipment specifications to your production requirements demands engineering precision. You must avoid generic industry averages. Under-sizing leads directly to part defects and damaged tooling. Conversely, over-sizing wastes immense amounts of energy and traps capital in unnecessary machine capacity.
Tonnage represents the locking force applied to the mold. You must calculate this metric carefully before purchasing equipment.
Inadequate tonnage carries severe risks. High injection pressures will force the mold halves apart. This causes flashing and destroys the dimensional stability of the final product.
Shot size defines the maximum amount of plastic the equipment can inject in one single cycle. You evaluate shot size in ounces or grams of polystyrene. Because different plastics have varying densities, you must convert the rated capacity based on your specific resin's specific gravity.
Operators must follow the "sweet spot" rule. The total part weight should fall between 30% and 80% of the maximum barrel capacity. If you utilize less than 30%, the plastic sits in the heated barrel too long. This excessive residence time causes thermal degradation and brittle parts. If you push beyond 80%, you risk incomplete fills and inconsistent melt mixtures.
Pressure metrics alone do not guarantee compatibility. The equipment must physically accommodate the mold tool. Tie-bars are the solid steel rods holding the platens together. You must verify the distance between these tie-bars to ensure the mold can slide into place.
Additionally, review the maximum and minimum daylight openings. The mold must open wide enough to allow the automated ejection of the finished part. Ignoring physical dimensions during procurement often results in buying a powerful machine that cannot physically fit the required tooling.
Bridging the gap between initial prototyping and full-scale mass manufacturing requires different equipment tiers. Recognizing the functional boundaries between desktop models and heavy industrial units prevents costly production bottlenecks.
Desktop models serve specific, constrained use cases. They fit easily into laboratories, maker spaces, and small workshops.
Moving to mass production mandates a transition to heavy industrial systems. These platforms handle automated, continuous, high-volume production of 10,000 or more parts.
Industrial platforms introduce massive structural rigidity. Heavy cast-iron platens resist deflection under extreme pressure. They feature automated part ejection systems driven by hydraulic or servo knock-out pins. More importantly, industrial units integrate seamlessly with robotic handling systems. This automation eliminates human bottlenecks, allowing facilities to run lights-out production shifts reliably.
You cannot operate an injection cell profitably in isolation. A massive portion of implementation failures stems from ignoring the auxiliary ecosystem. These "hidden" requirements dictate your ultimate cycle times and part quality.
Molten plastic must cool rapidly and uniformly inside the mold. Thermal management equipment controls this phase. Mold temperature controllers circulate heated fluid to maintain precise tooling temperatures. Chillers strip heat away from the mold surface. Inadequate cooling infrastructure extends cycle times drastically and causes severe part warpage as the plastic shrinks unevenly.
Raw plastic pellets rarely enter the hopper ready to melt. Many engineering resins, such as nylon, polycarbonate, and PET, are highly hygroscopic. They absorb ambient moisture from the air. If injected wet, this moisture boils inside the barrel, causing visual streaks and catastrophic mechanical weakness.
You must invest in desiccant dryers to strip moisture from the resin before processing. Additionally, automated vacuum loaders eliminate the ergonomic hazards of operators manually hauling heavy bags of plastic up ladders to fill hoppers.
Labor shortages demand aggressive automation strategies. At a minimum, cells require robotic sprue pickers. These simple pneumatic robots reach into the mold, grab the waste runner, and drop it into a grinder for recycling. Advanced setups utilize fully articulated six-axis robots for delicate part removal. Adding automated conveyors protects delicate parts from scratching and significantly reduces costly cycle inconsistencies caused by manual operator pacing.
Transitioning into the final purchasing mindset requires evaluating real-world operational concerns. Base equipment costs represent only a fraction of the total investment. You must heavily scrutinize the vendor's long-term ecosystem.
Downtime destroys profitability. Vendor service networks carry far more weight than upfront discounts. Before purchasing, verify local technician availability. Ask where the vendor stocks critical spare parts. Many platforms use proprietary electronic controllers. If a proprietary board fries, you might wait weeks for an overseas shipment. Prioritize vendors utilizing generic, universally available programmable logic controllers (PLCs) or those guaranteeing local parts warehousing.
Energy consumption deeply impacts factory overhead. You must audit the true energy consumption of the proposed equipment. Do not trust generic marketing claims. Ask for kilowatt-hour per kilogram (kWh/kg) metrics based on your specific resin. Factor in your local utility rates. This mathematical audit easily proves the actual return on investment when deciding to upgrade from legacy hydraulic systems to advanced all-electric models.
Routine maintenance tasks must happen efficiently. Material changeovers require operators to purge and clean the barrel. Evaluate the accessibility of core components. Can technicians easily pull the screw for deep cleaning? Do safety gates provide ample clearance for overhead cranes during mold swaps? Equipment designed with accessible maintenance points drastically reduces non-productive downtime across the machine's lifespan.
Choosing the correct equipment relies on balancing specific part requirements, operating costs, and vendor reliability. You must rigorously calculate tonnage and shot capacities rather than guessing. Understanding the functional differences between hydraulic, electric, and hybrid drives ensures you align your capital expenditure with your long-term energy goals. Furthermore, budgeting for the entire auxiliary ecosystem prevents disastrous installation delays.
Before issuing a purchase order, take clear actionable steps. Conduct a comprehensive Design for Manufacturing (DFM) review of your target parts. Request strict cycle-time guarantees from potential vendors based on your specific mold data. Finally, audit your facility's power and cooling infrastructure to confirm it can handle the heavy demands of modern production cells.
A: Costs depend heavily on tonnage capacity, drive technology, and integrated automation features. Base models represent only a fraction of the final capital expenditure. Fully integrated production cells require significant additional investments for robotics, chillers, and material handling systems. Buyers must deeply assess facility utility infrastructure and expected maintenance requirements rather than just looking at the initial equipment tag.
A: An industrial system typically lasts between 10 and 20 years. Consistent preventive maintenance directly dictates this longevity. Regular calibration, hydraulic fluid changes, and screw inspections keep the equipment running smoothly. Neglecting these routines will accelerate wear, leading to premature component failure and costly production downtime.
A: No single setup handles all polymers universally. Different plastics demand specific screw designs and distinct barrel heating profiles. Processing hygroscopic engineering resins also requires specialized auxiliary drying equipment. Attempting to run incompatible materials often degrades the polymer and leads to severe part defects.
A: Tonnage refers to the clamping force exerted to keep the mold tightly closed during the high-pressure injection phase. It does not indicate the physical weight of the equipment. If the tonnage is too low, the pressure of the molten plastic will force the mold open, causing material to leak and form defects.
