Manufacturing plastic components demands intense precision, immense pressure, and strict thermal control. A single misalignment between equipment capability and production demands can derail an entire facility. Understanding machine anatomy represents far more than a basic engineering exercise. It serves as a critical prerequisite for capital expenditure planning and preventing severe production bottlenecks. Procurement and engineering teams must spec equipment accurately to maximize overall output. This clarity directly impacts cycle times, part quality, and long-term maintenance overhead.

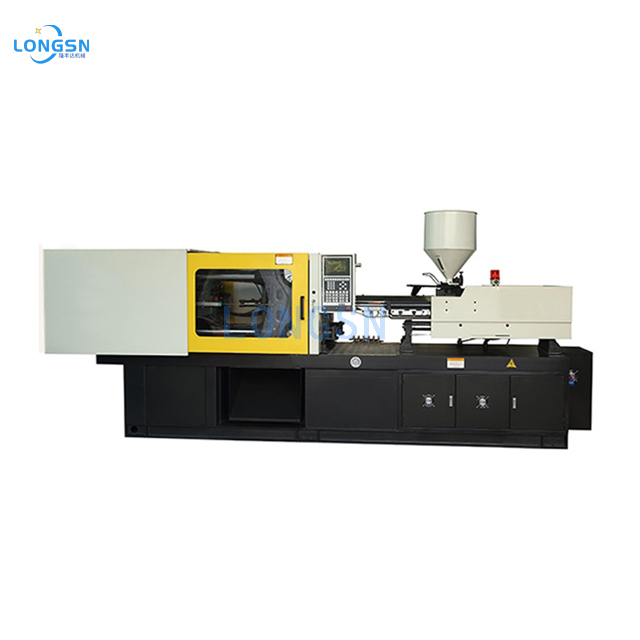

Before evaluating specific manufacturers or tonnages, you need a strong grasp of these core systems. We will explore how to align the structural components of an Injection Molding Machine with your specific material, volume, and compliance requirements. You will learn exactly what drives performance inside the factory. This guide ensures you enter the procurement phase fully prepared. You will discover how to avoid common pitfalls during the specification process.

Key Takeaways

• The injection unit dictates material compatibility and shot size capacity; oversizing leads to material degradation, while undersizing causes short shots.
• The clamping unit secures the mold under immense pressure; selecting between hydraulic, electric, or hybrid mechanisms directly impacts energy costs and precision.
• Mold and auxiliary systems (dryers, chillers) often dictate the actual cycle time limit; neglecting these in the initial evaluation creates hidden production bottlenecks.
• Modern control systems act as the operational brain, determining a machine's readiness for Industry 4.0 integration and automated quality assurance.

The Injection Unit: Managing Melt, Mixing, and Shot Size

The injection unit serves as the material processing hub. It handles the transformation of solid plastic pellets into a uniform, flowable melt. Understanding this system helps you match equipment capabilities to your specific polymer requirements.

Core Components and Functional Overview

This critical assembly relies on four primary components interacting seamlessly. The hopper holds raw plastic pellets and feeds them via gravity. The heated barrel houses the reciprocating screw. The reciprocating screw rotates to shear and melt the plastic, then plunges forward to inject the material. Finally, the nozzle acts as the bridge, directing the molten plastic securely into the mold sprue.

The injection unit takes full responsibility for feeding raw materials, melting them uniformly, and injecting the precise volume into the mold. Engineers refer to this injected volume as the shot size. Getting this volume right ensures dimensional stability and prevents part defects.

Evaluation Dimensions: Features-to-Outcomes

You must evaluate the injection unit based on specific production outcomes rather than generic specifications. The design of the reciprocating screw plays a massive role. Standard screws work well for general-purpose resins. However, barrier screws provide better mixing and shear rates required by complex engineering polymers. You must evaluate screw geometry based on the shear rate demanded by your target plastics.

Barrel sizing represents another critical evaluation point. The barrel capacity must match your required shot weight. Using a barrel that is too large forces the plastic to sit inside the heated zones for extended periods. This extended residence time risks severe thermal degradation of the polymer. Conversely, an undersized barrel cannot deliver enough material, leading to incomplete parts known as short shots.

Implementation Risks and Best Practices

Processing high-abrasion materials introduces significant implementation risks. Polymers like glass-filled nylons act like liquid sandpaper inside the barrel. They cause premature wear on standard screws and barrels. This wear leads to inconsistent shot sizes and frequent maintenance stops.

• Best Practice: Specify bi-metallic upgrades for screws and barrels when processing abrasive or corrosive materials to prevent costly downtime.
• Common Mistake: Ignoring the 20% to 80% capacity rule. Always ensure your required shot size falls between 20% and 80% of the barrel's total capacity for optimal thermal stability.

The Clamping Unit: Securing the Mold and Managing Tonnage

While the injection unit melts the plastic, the clamping unit keeps the mold securely shut. Molten plastic enters the mold under extreme pressure. The clamping system must counter this force entirely to ensure safe and precise part formation.

Core Components

The clamping unit consists of a massive stationary platen and a moving platen. Tie bars connect these platens and provide structural guidance. The clamping mechanism itself—typically a mechanical toggle or a hydraulic ram—generates the immense force required to lock the mold halves together.

Solution Categories: Drive Mechanisms

When selecting a clamping unit, you face three primary technological categories. Each category offers distinct operational benefits.

• Hydraulic Clamps: These represent the industry standard for high-tonnage applications. They offer incredible reliability and continuous holding force. However, they typically consume more energy and require regular fluid maintenance.
• Electric Clamps: Servo-driven electric systems offer exceptional precision and lower energy costs. They operate without hydraulic oil, ensuring a cleaner environment. This clean operation makes them crucial for medical device manufacturing and cleanroom compliance.
• Hybrid Clamps: These systems combine both technologies. They balance the rapid movement speeds of electric drives with the sheer holding force of hydraulic rams.

Evaluation Dimensions

Clamping force, or tonnage, must exceed the internal cavity pressure generated during injection. If cavity pressure overcomes clamping force, the mold halves separate slightly. This separation allows excess plastic to seep out, creating a defect called flash. Furthermore, you must evaluate the tie-bar spacing. This measurement determines the physical maximum mold size the machine can accept. Buying a machine with high tonnage but narrow tie bars will artificially limit your production capabilities.

The Tooling System: Cavities, Cores, and Runner Architecture

The tooling system represents the most customized aspect of the process. While you purchase the machine once, you swap out tooling systems constantly to produce different products. The mold acts as the highly engineered interface shaping the final component.

Core Components and Functional Overview

A standard mold consists of two main halves, commonly referred to as the A and B plates. The sprue receives plastic from the machine nozzle. Runners distribute this plastic to various cavities. Gates act as the entry points into those cavities. Internal cooling channels remove heat, and ejector pins push the final solid part out of the mold. The tooling system shapes the molten plastic into its final geometry and manages the thermal transition back to a solid state.

Evaluation Dimensions

Cooling efficiency dictates your overall profitability. The cooling phase accounts for up to 70% of the entire cycle time. Advanced conformal cooling designs, which follow the precise contours of the part, offer a higher return on investment for high-volume production. Faster cooling means faster part ejection.

You must also evaluate runner architecture. Cold runner systems are cheaper to manufacture but create waste material that you must recycle or discard. Hot runner systems keep the plastic molten right up to the cavity gate. This design generates zero waste and enables faster cycles, but it requires complex temperature controllers and higher initial tooling costs.

Trust and Verification

Do not assume standard mold bases will automatically fit all machines. You must verify equipment compatibility rigorously. Verification of ejector stroke limits ensures the machine can push the part entirely clear of the mold. Additionally, you must check the platen daylight—the maximum opening distance between platens. Ignoring daylight verification during the shortlisting phase leads to severe installation failures.

Control Systems and Sensors: Precision, Repeatability, and Compliance

Modern manufacturing requires granular data and instant adjustments. The control system acts as the operational brain of the equipment. It coordinates the massive mechanical forces and thermal loads occurring every few seconds.

Core Components and Functional Overview

Industrial controls rely on Programmable Logic Controllers (PLCs) paired with Human-Machine Interfaces (HMIs). Beneath the surface, an array of pressure transducers and linear position sensors feed data back to the PLC. This network monitors and adjusts barrel temperatures, injection pressures, ram speeds, and cooling times in real time.

Evaluation Dimensions

The distinction between closed-loop and open-loop control systems defines machine capability. Open-loop systems execute commands without verifying the outcome. Closed-loop systems monitor the actual physical result and automatically adjust for environmental variables. If oil viscosity changes due to ambient factory heat, a closed-loop system instantly modifies pump output to maintain steady injection speeds. This capability significantly reduces scrap rates for tight-tolerance parts.

Data integration capabilities represent another major evaluation metric. Modern facilities demand compatibility with Manufacturing Execution Systems (MES) and OPC-UA communication standards. These protocols enable automated data logging, predictive maintenance, and strict compliance reporting. This traceability proves vital for aerospace, automotive, and medical sector contracts.

Auxiliary Equipment: The Hidden Variables in System ROI

A world-class processing machine cannot overcome poor material preparation or inadequate cooling infrastructure. Auxiliary equipment often dictates the actual cycle time limit of your entire cell.

Core Components and the Bottleneck Problem

A complete production cell includes material dryers, thermolators (mold temperature controllers), chillers, granulators, and robotic sprue pickers. A high-end production unit will severely underperform if bottlenecked by inadequate auxiliary support. Neglecting these support systems in the initial evaluation creates hidden production bottlenecks.

Implementation Considerations

Material conditioning requires strict attention. Hygroscopic materials, such as ABS and Polycarbonate (PC), actively absorb moisture from the air. You must use specialized desiccant dryers to remove this moisture before melting. Failure to dry the resin results in moisture flashing to steam inside the barrel. This creates structural weaknesses and cosmetic surface defects known as splay.

Cooling infrastructure requires equally careful planning. Chiller capacity must be scaled precisely. You cannot just match the chiller to the machine size. You must scale it to the specific heat-removal requirements of the mold and the total polymer mass processed per hour.

Component-Driven Shortlisting: How to Spec Your Machine

Bridging the gap between component knowledge and equipment procurement requires a structured approach. You must evaluate the system holistically to ensure long-term viability.

Decision Framework

1. Define the Part: Start by locking in the precise volume, physical dimensions, material family, and required dimensional tolerances.
2. Calculate Tonnage: Determine required clamping force based on the projected surface area of the part multiplied by the material flow length factor.
3. Select the Drive Type: Choose between Hydraulic, Electric, or Hybrid platforms based on cleanroom needs, facility energy targets, and initial budget constraints.
4. Audit the Envelope: Ensure tie-bar spacing, stroke limits, and daylight safely accommodate your current and future mold portfolios.

Next-Step Actions

Do not rely solely on manual calculations for complex parts. Engage directly with machine manufacturers to perform a formal mold-flow analysis. This software simulation will validate your tonnage requirements and shot size assumptions scientifically before you ever issue an RFQ (Request for Quote). Validation prevents costly specification errors.

Conclusion

The overall viability and profitability of your manufacturing cell rest on the synergy between its core systems. The injection unit, clamping force mechanisms, digital controls, and auxiliary support systems must operate in total harmony. Ignoring any single aspect compromises part quality and limits production speeds.

Base your procurement decisions on total system integration rather than isolated component specifications. Prioritize scalable control architectures and appropriate drive technologies. Doing so ensures your equipment aligns perfectly with your facility's long-term production roadmap and daily operational demands.

FAQ

Q: What is the most critical part of an injection molding machine?

A: No single part operates independently. The most critical aspect is the seamless interplay between the injection unit and the clamping unit. Neither of these massive mechanical systems functions correctly without precise, real-time coordination from the central control system.

Q: How do I determine the right barrel size for my production?

A: You must follow the 20% to 80% capacity rule. Your calculated shot size should consume no less than 20% and no more than 80% of the barrel's maximum volume. This ratio prevents dangerous thermal degradation while avoiding short shots.

Q: What is the difference between toggle and fully hydraulic clamping units?

A: Toggle clamps use mechanical linkages to generate holding force, offering faster movement and excellent mechanical advantage at lockup. Fully hydraulic rams apply direct, continuous fluid pressure, requiring a larger footprint but offering highly adjustable force across the entire stroke.

Q: Why is auxiliary equipment considered part of the machine ecosystem?

A: The core machine relies entirely on auxiliaries to function at peak speed. Chillers dictate how fast a part cools, while dryers ensure material integrity. Because they directly dictate actual cycle times and part quality, auxiliaries remain inseparable from the primary machine's performance.
