While asking how the equipment works seems like a basic engineering question, understanding these core mechanics remains a critical prerequisite for evaluating manufacturing partners. Grasping the underlying physics empowers you to forecast unit economics accurately and audit production quality effectively. Many product developers treat the manufacturing floor as a black box, hoping vendors will magically deliver optimal results. However, this disconnect frequently leads to significant budget overruns, missed dimensional tolerances, and delayed product launches. This guide transitions directly from basic hardware mechanics to practical commercial applications. You will learn exactly how machine specifications—such as tonnage, drive types, and cycle stages—directly dictate part tolerances, production speed, and overall project viability. We aim to equip you with the technical baseline needed to specify equipment confidently, evaluate vendor capabilities thoroughly, and de-risk your entire manufacturing pipeline.

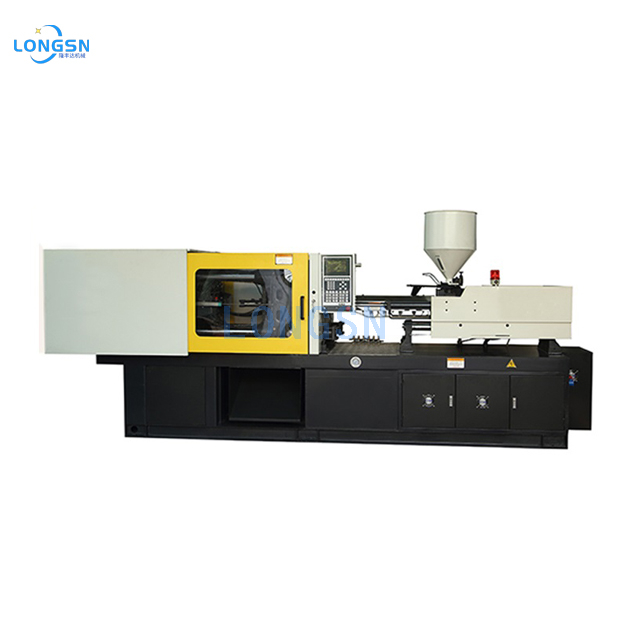

Understanding equipment hardware reveals exactly how each subsystem influences final product quality. We can deconstruct the machine into three primary physical zones. Each zone plays a distinct role in defect prevention.
This section prepares the raw polymer for processing. The hopper feeds raw plastic pellets into a heavily heated barrel. Inside this barrel, a reciprocating screw rotates to melt and mix the polymers uniformly. A non-return valve sits at the tip of the screw. It prevents molten material from flowing backward during the actual injection phase. Finally, the nozzle directs the pressurized liquid plastic directly into the mold cavity.
Evaluation Lens: Barrel capacity and screw design directly dictate melt uniformity. You must ensure consistent heating across all barrel zones. Inconsistent heating here causes severe structural weaknesses like knit lines. You might also notice visual defects such as splay or silver streaking on your finished surfaces.
The clamping unit provides the brute physical force necessary for production. This subsystem contains the fixed platen, moving platen, tie bars, and the main toggle or direct hydraulic clamp. The fixed platen holds the stationary half of your tool. The moving platen drives the other half forward to seal the cavity.
Evaluation Lens: This unit must hold the mold completely shut under extreme internal cavity pressure. Insufficient clamping force always leads to a defect called flash. Flash occurs when excess liquid plastic seeps out along the tool's parting line. You will then need to implement costly manual post-processing routines to remove this sharp excess material.
Implementation Reality: The Injection Molding Machine acts solely as the delivery mechanism. Your custom-machined steel or aluminum mold actually dictates the final product geometry. The machine’s physical tie-bar spacing strictly limits the maximum size of the mold block you can insert. Operators must carefully align the tool sprue bushing with the machine nozzle. Perfect alignment prevents material leakage and ensures smooth flow.
Operational workflow breaks down into specific cost-driving stages. In mass manufacturing, time operates directly as capital. Saving merely two seconds per cycle drastically improves your annual production volume.
Buyers must align equipment capabilities directly to specific industry compliance requirements. The drive system powers every movement. Choosing the correct drive system fundamentally impacts your precision, energy consumption, and maintenance schedules.
These traditional units utilize large hydraulic pumps and directional valves to drive motion. They offer massive clamping force capabilities. They require lower initial equipment investment. Hydraulic models work exceptionally well for large, thick-walled parts like heavy automotive body panels or storage bins.
However, they remain highly prone to microscopic oil leaks. This messy reality makes them totally unsuitable for sterile cleanrooms. They consume higher energy levels because the pump often runs continuously. You may also experience slight variations in cycle consistency due to oil temperature fluctuations.
Electric models deliver unmatched precision via independent digital servo motors. They run ultra-quietly and boast incredible energy efficiency. They only consume power when a specific motor actuates. Crucially, they pose zero hydraulic oil risk. ISO-certified medical and optical molding facilities absolutely mandate this clean technology.
The primary drawback involves higher initial capital expenditure. Furthermore, engineers generally limit all-electric designs to lower tonnage tiers. Generating massive clamping force solely through servo-driven toggles becomes mechanically prohibitive at extreme scales.
Evaluation Logic: Hybrid technology smartly combines electric screw rotation for high precision with hydraulic clamping for heavy tonnage. This option proves ideal for manufacturers balancing high output requirements against tight dimensional tolerances. Hybrids offer excellent energy efficiency while maintaining the brute force needed for large-format engineering components.
Use the following summary chart to compare these core technologies quickly:
| Machine Drive Type | Primary Advantages | Common Disadvantages | Ideal Industrial Applications |
|---|---|---|---|
| Hydraulic | Maximum clamping force, lower initial investment | Oil leak risks, higher energy use, louder operation | Large durable goods, automotive panels, furniture |
| All-Electric | Unmatched precision, zero oil risk, highly energy efficient | Higher capital expense, limited maximum tonnage | Medical devices, optical lenses, micro-components |
| Hybrid | Balances rotational precision and heavy clamping force | More complex maintenance requirements | High-volume engineering parts, consumer electronics |
You need specific technical evaluation dimensions to audit a supplier's capacity accurately. Alternatively, you need these metrics to specify your own capital equipment correctly. Misjudging machine size heavily penalizes your operation.
Framework: Generally, you require 2 to 5 tons of clamping force per square inch of the part’s projected area. The projected area is the 2D shadow the part casts when viewed from the direction of the clamp opening. This exact tonnage multiplier depends heavily on the material's melt flow index (MFI). High-viscosity plastics like polycarbonate demand much higher pressures.
Undersized machines allow the mold to blow open slightly during injection, causing severe flash defects. Conversely, using massive oversized machines for tiny parts wastes precious capital through highly inefficient energy use.
Rule of Thumb: The part's total volume, plus all runners and sprues, should utilize roughly 30% to 80% of the machine’s maximum shot capacity. This ratio ensures optimal thermal stability for the polymer.
If the barrel capacity is too small, the machine empties completely prematurely. You will fail to fill the mold. If the barrel capacity is vastly oversized, the material degrades thermally. It spends too much time idling inside the aggressively heated zones before injection.
You must rigorously evaluate physical spatial constraints. Tie-bar spacing limits the exterior dimensions of your steel tool. You must ensure a multi-cavity mold will easily fit inside the operational envelope. The maximum daylight and stroke dictate exactly how far the platens can open. This opening distance must confidently clear the deepest section of your molded part during ejection. Selecting an appropriately sized Injection Molding Machine ensures smooth, uninterrupted high-volume scaling.
Equipment mechanics force very specific design decisions. Addressing these implementation risks early in the CAD phase saves months of tooling revisions.
The machine's maximum available injection pressure dictates exactly how far liquid plastic can travel through a thin cavity before freezing off. Extremely thin walls demand aggressive high-pressure capabilities. If the factory equipment cannot sustain this required pressure peak, you will encounter incomplete short shots. You must adjust your nominal wall thickness to match the realistic capabilities of the selected press.
The equipment's mechanical ejector stroke necessitates careful geometric considerations. You typically need 1–2 degree draft angles on all vertical walls parallel to the tool opening direction. This draft prevents severe part deformation during the harsh ejection stroke. Ignoring this physical relationship causes aggressive friction damage. You will see deep scuff marks dragging across your finished cosmetic surfaces.
A setup utilized for rapid aluminum tooling behaves very differently than a high-tonnage production unit. During the New Product Introduction (NPI) stage, technicians carefully apply lower clamping forces. Rapid aluminum tools simply cannot withstand massive, sustained pressure without deforming. Scaling stages use hardened steel molds specifically designed for aggressive, continuous cycles. You must account for these mechanical differences when transitioning geometries from soft prototypes to final hardened parts.
Choosing a manufacturing partner requires more than reviewing a simple quote. You must actively audit their factory floor. The equipment they operate dictates the quality they can realistically promise.
Older hydraulic units frequently struggle with precise cycle repeatability. Valves wear down over millions of cycles, causing pressure fluctuations. You should confidently demand to see comprehensive maintenance logs. Ask potential partners to share their process control data. Advanced systems like RJG eDART monitor internal cavity pressure in real-time. This level of transparency proves their true capability to maintain tight dimensional tolerances.
Look carefully for tier-1 equipment manufacturers operating on the factory floor. Premium brands like Engel, Arburg, KraussMaffei, and Husky serve as a reliable proxy for quality commitment. A vendor choosing to invest heavily in top-tier machinery usually invests equally heavily in rigorous quality assurance protocols. Cheap, off-brand equipment often points toward a strategy prioritizing aggressive cost-cutting over long-term reliability.
Evaluate whether the fleet features integrated robotic sprue pickers or automated part conveyors. Machine-side automation significantly reduces cycle time variance. A robot removes the part in the exact same fraction of a second, every single cycle. It also drastically limits human-handling defects, such as oily fingerprints or accidental drops. A highly automated Injection Molding Machine strongly indicates a mature, highly scalable manufacturing environment ready for serious volume.
Understanding the hardware behind your production fundamentally shifts your entire approach to manufacturing. The process is never a mysterious black box. It remains a highly quantifiable system governed by heat, pressure, and time. Matching your specific part design to the correct equipment size and drive type establishes the true foundation of profitable manufacturing operations. Proper alignment here prevents defects, accelerates production, and protects your capital investment.
Next Steps:
A: Equipment size is primarily measured by clamping force (tonnage) and shot capacity. Tonnage indicates the maximum physical force the machine can apply to keep the mold closed during high-pressure injection. This ranges from 10 tons for micro-parts to over 4,000 tons for large automotive components. Shot capacity measures the maximum volume of plastic the barrel can inject in a single cycle. Both metrics must align perfectly with your part dimensions.
A: No. Different plastics require highly specific processing parameters and specialized hardware configurations. High-temperature resins like PEEK require specialized ceramic heating bands. Corrosive materials like PVC demand specialized corrosion-resistant screws to prevent rapid equipment degradation. Furthermore, many engineering-grade polymers require dedicated auxiliary drying equipment before they even enter the hopper. You must match the hardware specifications directly to your chosen resin type.
A: A standard cycle time ranges from 15 seconds to roughly 2 minutes. This duration depends heavily on the maximum wall thickness of your part and the thermal management capabilities of the tool. Thin-walled packaging can complete a cycle in under 5 seconds. Conversely, thick, complex engineering components may require several minutes just for the internal cooling phase to complete. Highly efficient cooling lines drastically reduce this overall timeframe.
