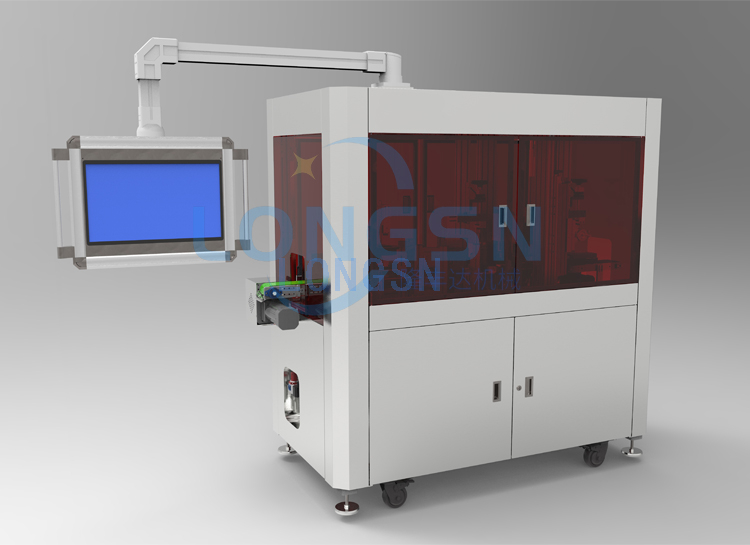

Automatic High-precision plastic bottle/cap Image Measuring Machine Vision Inspection Machine
The visual imaging principle is used to detect and it is more accurate to judge visible foreign matters. Such as Label defect, Sealing and capping defects, Product and packaging integrity defects, Printing defects, Container defect.
| Equipment model | LSN36J/H-150b | LSN48J/H-200b | LSN48J/H-300b |
| Application | 50-1,000ml plastic bottle / soft PP bottle | ||
| Inspection items | Fiber, hair, white blocks and other insoluble objects, bubbles, black spots and other appearance defects | ||
| Voltage | AC 380 V, 50 Hz | ||
| Power | 18 KW | ||
| Compressed air consumption | 0.6 MPa, 0.15 m³ /min | ||
| Max production capacity | 9,000 pcs/h | 12,000 pcs/h | 18,000 pcs/h |
