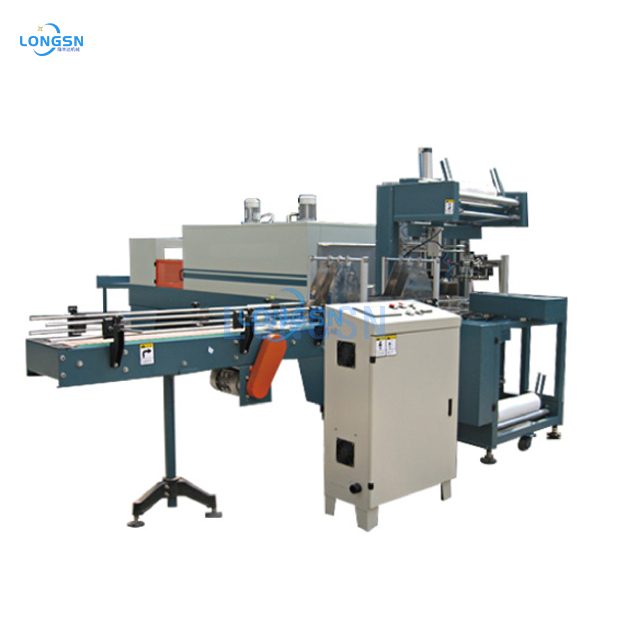

Full automatic plastic water Pet Bottle Pvc Film Shrink Packing Wrapping Machine with Heat Tunnel
Shrink Wrapping Machine is an automatic machine with precut membrane system for packing a group of containers in packs and bundle, it is widely used for PET bottles, glass bottles, plastic bottles, cups, cans and other containers of water, juice, milk, beverage products.
1. imported European PLC program automatic control, stable performance, precise control.
2. fully automatic function of automatic feeding, sizing, shrinking and cooling.
3. thin film conveying is controlled by inductive switch, which can regulate the length of film and reduce the loss.
4. imported motor frequency conversion control, stepless scheduling.
5. advanced spiral circulation structure, three layers of insulation treatment, energy conservation.
6. enhanced cooling channel, the product can be quickly finalized, easy storage and transportation.
Parameter:
| LFD-SHW2 | Technical Parameters |
| Dimension for The Whole Unit | L5500mm x W3200mm x H2100mm |
| Thermal Shrinkage Passage Dimension | L1800mm x W650mm x H450mm |
| Max. Package Dimension | L600mm x W400mm x H350mm |
| Packaging Speed | 8-13Pcs/min |
| Transfer Belt Dimension | 800-1200mm |
| Operating Power Supply/Power | (TN-S) 380V 19kw |
| Operating Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 0.5m3/min |
Before the order:
We will make detailed solution for you based on your requirments.
We will send you videos of our products to know more about our machines.
If you are willing to visit our factory,we will pick you up at a nearby airport/station.
After the order:
We will start to produce machines and update the progress.
Our engineer will draw the layout for you.
After-sales service:
Arrange our engineer to your factory to install machines if you need,train your employee until they can operate machines well.
Provide you 2 years warranty with spare parts 2 year free.
24 hours for engineer response (all services part 5days in customer hand by Intl' courier)
Zhangjiagang Longsn Machine Co., Ltd. is a professional manufacturer which integrating development, research, design, manufacturing, technical service and marketing to manufacture complete sets of Packaging machines .
Zhangjiagang Longsn Machine Co., Ltd. factory covers an area of 8,000 square meters, has more than 10 professional design and development teams, and more than 30 professional production and installation commissioning engineers. We adhere to the policy of "market-oriented, quality-oriented, service-guaranteed and reputation-based". Longsn Machines follows the ISO 9001:2000 international quality management system, establishes and improves the quality assurance system to ensure the quality and performance of the company's products.
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q5:How can I install my machine when it arrives?
A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
