More than 18 years Professional leader manufacturer.
Material: | |
---|---|
Bottle Volume: | |
Warranty: | |
Certification: | |
Availability: | |
Quantity: | |
CGF
LONGSN

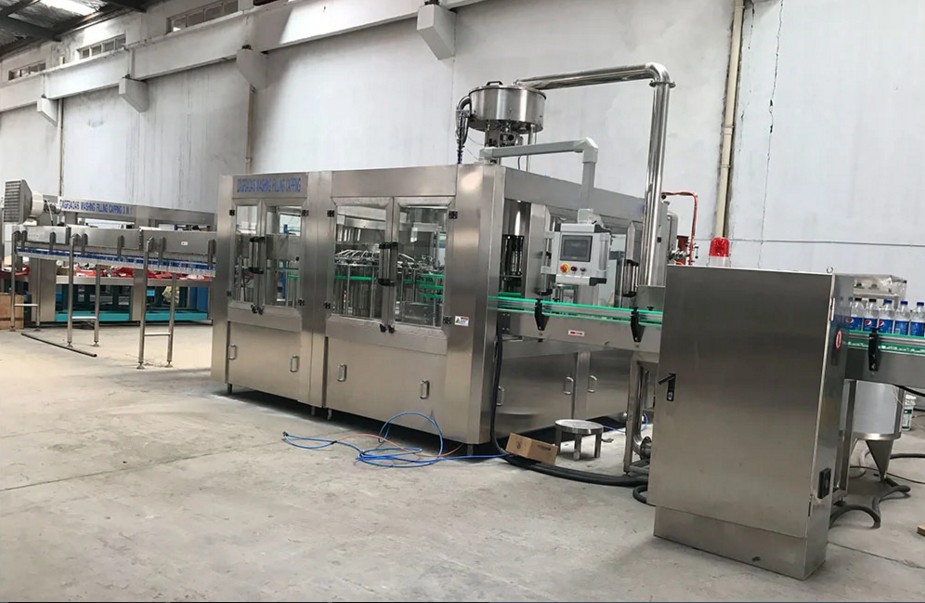

Bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.
Model | LFD8-8-3 | LFD 14-12-5 | LFD 16-16-6 | LFD 24-24-6 | LFD 32-32-8 | LFD 40-40-10 |
Capacity | 2000PBH(500ML) | 5000PBH | 8000PBH | 12000PBH | 15000PBH | 18000PBH |
(500ML) | (500ML) | (500ML) | (500ML) | (500ML) | ||
Washing heads | 8 | 14 | 16 | 24 | 32 | 40 |
Filling heads | 8 | 12 | 16 | 24 | 32 | 40 |
Capping heads | 3 | 5 | 6 | 6 | 8 | 10 |
suitable bottle | PET bottle,plastic bottle | |||||
Diameter of bottle | 55-110mm | |||||
Height of bottle | 150-310mm | |||||
Suitable cap | Plastic screw cap | |||||
Weight | 1500kg | 2000kg | 4000kg | 4500kg | 6000kg | 7800kg |
Main motor power | 1.2kw | 1.5kw | 3kw | 3kw | 3kw | 5.5kw |

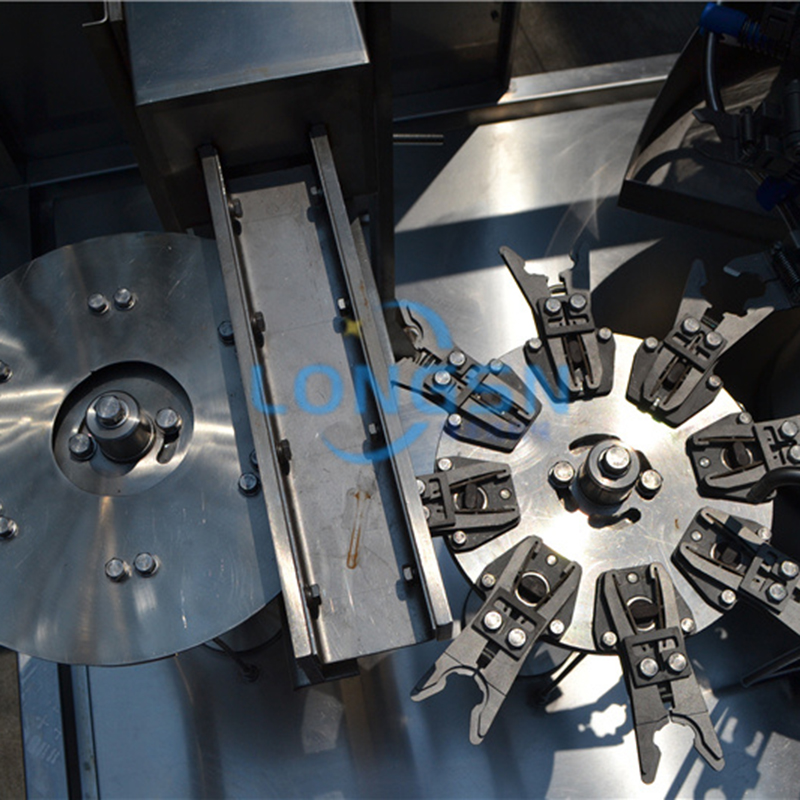

Washing heads
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

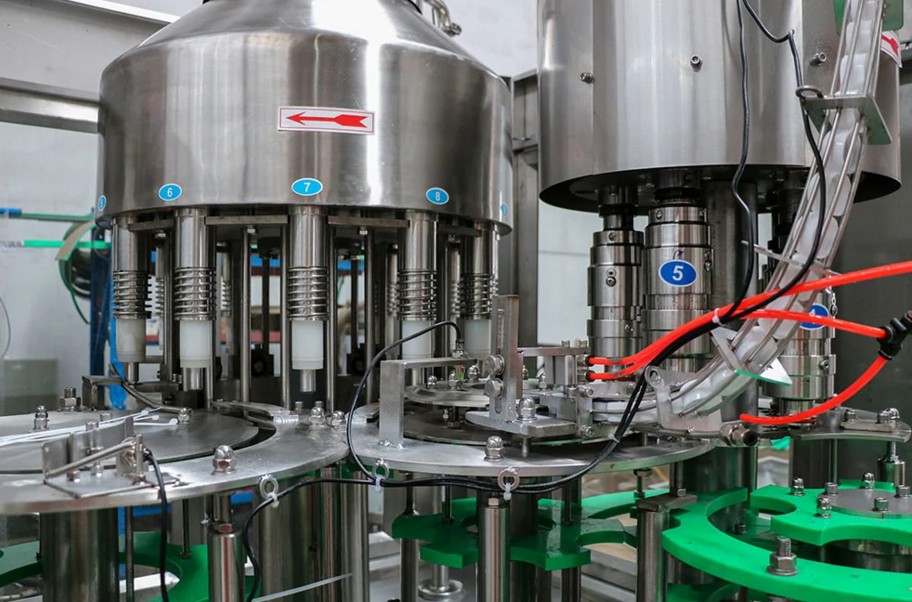

Filling heads
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

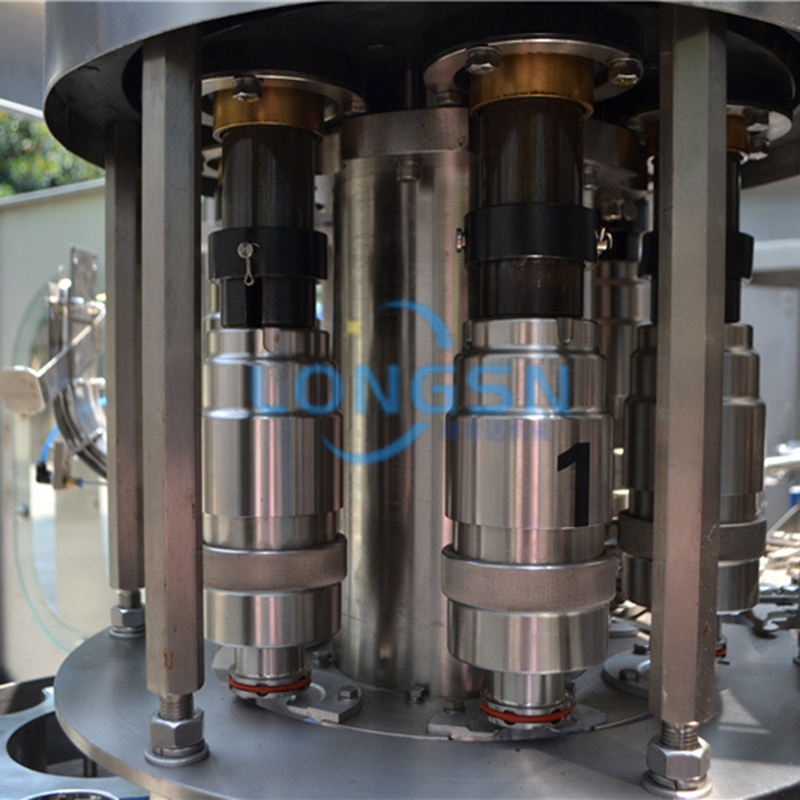

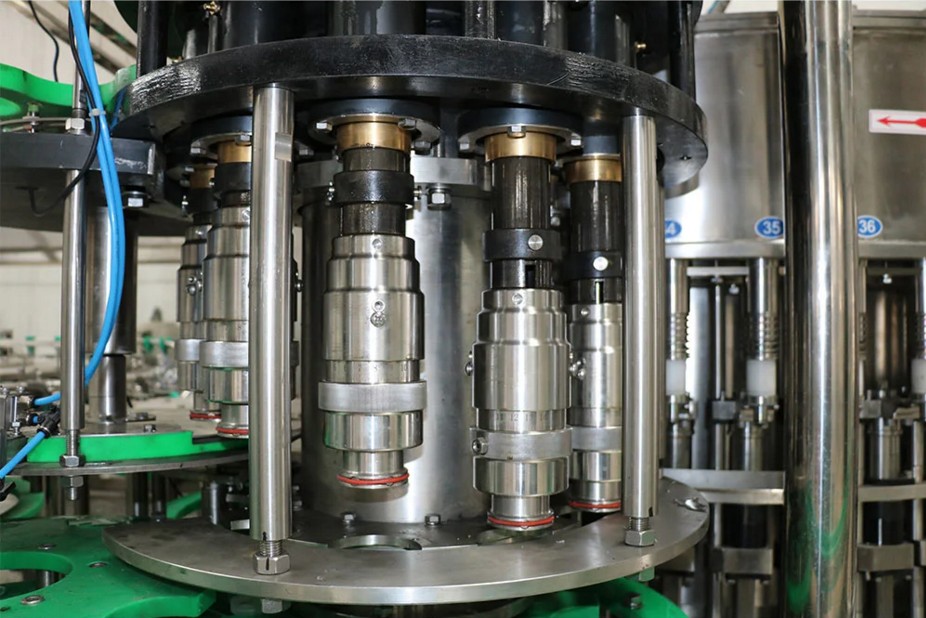

Capping heads
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Main Features
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Control System
S/N | Name | Brand | Country |
1 | Main motor | ABB | Switzerland |
2 | Inverter | MITSUBISHI | Japan |
3 | PLC | OMRON | Japan |
4 | Touch screen | MITSUBISHI | Japan |
5 | Contactor | SCHNEIDER | France |
6 | Thermo- relay | SCHNEIDER | France |
7 | Air-break switch | SCHNEIDER | France |
8 | Proximity switch | TURCK | USA |
9 | Photoelectric switch | BANNER | USA |
10 | Air circuit system | SMC | Japan |
11 | Water pump | Southern | China |
