LSN-90S
LONGSN

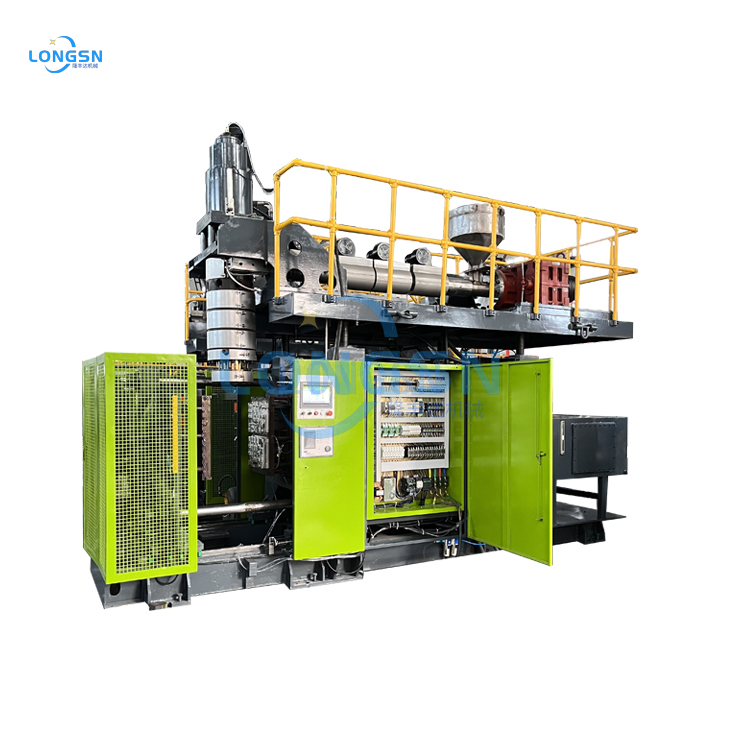

The LSN energy saving series extrusion blow molding/moulding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 60L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
| Parameters | Units | LSN80 | LSN90 |
| Material | PE,PP,PV,PVC,PA | PE,PP,PV,PVC,PA | |
| Number of die head | set | 1,2,3,4 | 1,2,3,4 |
| Max Container capacity | 30L | 60L | |
| Screw diameter | mm | 80 | 90 |
| Screw L/D ratio | - | 24 | 24 |
| (50HZ)Screw rpm(50hz) | r/min | 10-60 | 10-60 |
| (PE)Extrusion capacity per hour | kg/h | 110 | 140 |
| Number of heaters | - | 4 | 4 |
| Platen size | mm | 750*800 | 900*950 |
| Clamping force | KN | 230 | 360 |
| Dry cycle time | s | 12 | 13 |
| Air pressure | Mpa | 0.8 | 0.8 |
| Compressed air comsumption | m3/min | 0.8 | 1.0 |
| Machine dimension(L*W*H) | mm | 5000*2900*3950 | 5200*4700*4000 |
| Machine net weight | T | 12 | 16 |
| Extruder heating power | kw | 16 | 22 |
| Hydraulic motor | kw | 15 | 18.5 |
| Total power | kw | 81 | 100 |
The LSN energy saving series extrusion blow molding/moulding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 60L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
